Used 2023 Dynamax isata 3 24RW

Motor Home Class C - Diesel

Stock #90958A

Sewell, NJ

Rear slide-out! A ton of fun in a small package!!

1 of 6

Specifications

Sleeps	3	Slides	2
Length	24 ft 7 in	Ext Width	7 ft 10 in
Ext Height	11 ft 5 in	Int Height	6 ft 9 in
Hitch Weight	5000 lbs	GVWR	11030 lbs
Fresh Water Capacity	35 gals	Grey Water Capacity	32 gals
Black Water Capacity	32 gals	Tire Size	16"
Furnace BTU	20000 btu	Fuel Type	Diesel
Miles	5077	Engine	3.0L V6 Turbo Diesel
Chassis	Mercedes Benz Sprinter	Horsepower	188 hp
Fuel Capacity	26 gals	Wheelbase	170 in
Available Beds	Queen	Torque	325 ft-lb
Refrigerator Type	Two Way Double Door	Refrigerator Size	6 cu ft
Convection Cooking	Yes	Cooktop Burners	3
Number of Awnings	1	Axle Weight Front	4410 lbs
Axle Weight Rear	7720 lbs	LP Tank Capacity	20.3 gals
Water Heater Type	Truma Aqua Go Comfort On Demand	AC BTU	15000 btu
TV Info	LR 32" LED TV, BR 32" LED Smart TV	Awning Info	16' Armless w/LED Lighting and Motion Activated Retraction
Gross Combined Weight	15250 lbs	Shower Type	Standard
Electrical Service	30 amp	VIN	W1X8E33Y7NN204148

Description

Dynamax isata 3 Class C diesel motorhome 24RW highlights:

Rear Private Bedroom
Booth Dinette Slide
Full Bathroom
Countertop Extension
Exterior Speakers

Enjoy a home away from home with this motorhome! The rear private bedroom has a queen bed slide for more interior space and privacy curtains to draw at night. If you need more sleeping space then you could add the optional cab over bunk. The booth dinette slide is not only great for enjoying meals and play card games, but can also transform into an extra sleeping space. You could switch it out for the optional theater seating to meet your specific needs. The bathroom has a shower with a skylight above for added natural lighting and an Oxygenics body spa RV shower head for a relaxing shower, and the vanity sink is just outside the bathroom so one person can get ready while another washes up. Store all of your outdoor gear in the exterior seamless rotocast storage compartment with LED lighting to see clearly at night too!

Each one of these Dynamax isata 3 Class C diesel motorhomes were designed to last for years of fun with composite exterior fiberglass with no exterior wood, aluminum-framed roof trusses, and composite flooring substrate. The 3.0L V6 turbo diesel engine is also fuel efficient and a Mercedes-Benz Sprinter chassis holds them together. There is an MBUX 10.25" infotainment system and a quad-view camera system that will let the driver navigate the open road like a pro, and the added safety features are sure to bring you peace of mind. Outside, you'll be wowed by the custom full-body paint package with front-end Diamond Shield paint protection, plus there are exterior speakers, an armless patio awning with LED lights, and seamless rotocast storage compartments for your gear! Each model also includes many interior comforts to make you feel right at home, like the premium vinyl flooring throughout, hardwood craftsman-style cabinetry, solid surface countertops with LED edge lighting and backsplash, and the list goes on!

Features

Standard Features (2023)

Chassis

Mercedes-Benz® Sprinter Chassis
3.0L V6 Turbo Diesel Engine (188hp and 325 ft.-lbs. of Torque)
7G-TRONIC PLUS Automatic Transmission with Overdrive
26.4-Gallon Fuel Tank
5.75-Gallon Diesel Exhaust Fluid Tank
Lane Keep Assist
Adaptive Cruise Control
Active Brake Assist
High-Beam Assist
Crosswind Assist
Attention Assist
Traffic Sign Assist
Rescue Assist
Electronic Stability Program (ESP)
Wet Wiper System
Trailer Hitch (5,000 Tow lbs.) with 7-Way Round Tow Connection
Momentary Battery Booster Switch for Connecting Chassis and House Batteries
Single 12V Chassis Battery
220-Amp Alternator
LED Brake, Turn, and Backup Lights
Aluminum Running Boards
Bilstein® Gas-Charged Rear Shock Absorbers
Aluminum Wheels (Set of Four) with Metal Valve Extensions
Front and Rear Tires: LT215/85 R16
Single Front Wheels and Dual Rear Wheels (5.5" x 16")
Tire Pressure Monitoring System with Metal Valve Extensions
4.18 Rear Axle Ratio
Power, Heated Leatherette Cab Seats with Swivel Bases
Upgraded Multifunction Steering Wheel
Upgraded Instrument Cluster with Pixel-Matrix Display
Quad-View Camera System (Right Side, Left Side, Hitch, and Rear HorizoViews)
MBUX (Mercedes-Benz User Experience) 10.25" Touch Screen Infotainment System with Navigation, AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™ / Android® Auto™ Functionality, and "Hey Mercedes" Voice Control
12V and USB Accessory Ports
Adjustable Steering Column
Power Windows and Locks
Power Exterior Mirrors (Auto-Heated at Low Temperatures)
3-Point Seat Belts
Front, Thorax, & Window Safety Air Bags
Lockable Safe in Passenger Seat Base
Deluxe, Removable Automotive Cab Carpet Mat
Drink Holders

Construction

1 ½” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
Composite Exterior Fiberglass (No Exterior Wood)
Aluminum-Framed Floor
Composite Flooring Substrate (Lightweight & Moisture-Resistant)
Aluminum-Framed Roof Trusses
Crowned, One-Piece Fiberglass Roof
Fiberglass Rear Bumper
Foil-Lined Ductwork Throughout
Aerodynamic Fiberglass Front Wing Panels
Automatic, 4-Point Hydraulic Leveling Jacks with Bluetooth Smart Phone App Control
Dark-Tinted, Frameless Windows
Seamless Rotocast Storage Compartments with LED Lighting
Locking Aluminum Exterior Storage Doors with Compression Latches
Electric Slide System

Exterior

Custom Full Body Paint Package
Premium Cut and Buffed Paint Finish
Front-End Diamond Shield® Paint Protection
Armless Patio Awning with LED Lighting and Motion-Activated Retraction
Slideout Topper(s)
LED Patio Light
Entry Door with Dark-Tinted, Frameless Window and Integrated Shade
Lighted Acrylic Entry Grab Handle
Power Entry Step
Exterior TV Mount
Exterior Speakers
Front and Rear LED Clearance and Marker Lighting

Interior

Premium Vinyl Flooring Throughout
Soft-Touch Padded Vinyl Ceiling
LED Ceiling Lighting
Sprung, Residential Style Dinette Seats with Lift Up Storage
Coordinating Window Treatments
Blackout Roller Shades (Steel Blind at Kitchen Window)
Hardwood Craftsman-Style Cabinetry
Full Extension, Soft-Closing Drawer Guides (where applicable)
Hidden Hinges
32” LED TV (Living Area)
Stereo System - AM/FM/CD/DVD with Zoned Speaker Control and Bluetooth® Smart Phone App Control
Easy Access Battery Compartment Beneath Entry Step
Entry with Non-Skid Rubber Step and Steel Risers
Thermal, Reflective Front Privacy Shades
USB Charging Ports
Cocktail Table Between Cab Seats
Cab Seat Booster Cushions (Set of Two)

Kitchen

6.0 cu. ft. 2-Way Refrigerator (Double-Door)
Gas Range with Glass Cover and Overhead Range Cover
Convection Microwave Oven
Solid Surface Countertops with LED Edge Lighting and Backsplash
Solid Surface Countertop Extension
Stainless Steel Sink with Solid Surface Cover
Residential Stainless Steel Spring Gooseneck Faucet
Under-Cabinet Lighting
MaxxAir® Power Vent with Built-In Rain Cover

Bedroom

Queen Bed (60” x 75”) with Gel-Infused Memory Foam Mattress
Under-Bed Storage (24FW)
Deluxe Padded Headboard (24RW)
Designer Bedding Package
32” LED Smart TV
Cedar-Lined Wardrobe
LED Reading Lights
USB Charging Ports
Privacy Partition

Bathroom

Shower with Light-Weight, Soft-Sided Shower Door and Skylight
Oxygenics Body Spa® RV Shower Head
Stainless Steel Sink with Residential Faucet
Composite Foot-Flush Toilet with Hand Sprayer
MaxxAir® Power Vent with Built-In Rain Cover

Utilities

Low Temp Lithium (200aH) in Place of AGM Batteries
Firefly Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
Battery Disconnect at Entry
30-Amp Service
2,000W Pure Sine Wave Inverter (3,300 Peak Watts)
3.6kW Onan® LP Generator with Auto Transfer Switch (Mounted Isolator Pads)
Automatic Generator Start
Solar Panels - Single 190W with 30 Amp Controller
Ducted, Low-Profile 15,000-BTU Air Conditioner with Heat Pump
20,000-BTU Furnace with Electronic Ignition
60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
20.3-Gallon LP Tank (WC)
LP Quick Connect
Water Filtration System
Exterior Shower in Service Bay
Exterior GFCI Receptacle
Winegard® AIR 360+ with Gateway Router (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
4x4 HDMI Matrix
Cable TV/Satellite Hookup
60-Amp Progressive Dynamics Converter with Charge Wizard® System
Black Tank Flush
TruTank® Level Monitoring (Measures in 5% Increments)
12V Heat Pads, Gray, and Black Tanks
Water Management Valve for Fill and Winterizing
Upgraded 12V On-Demand Water Pump (4 gallons per minute)
Carbon-Monoxide, LP, and Smoke Detectors
Fire Extinguisher

Options

Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets
Extended Fiberglass Front Cap with Cab-Over Bunk Mattress and Privacy Curtain (+179 lb.)
Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD) (+10 lb.)
3.2kW Onan® Diesel Generator in Place of Standard 3.6kW LP (+27 lb.)
Dual, Power Reclining Theater Seats in Place of Dinette (+40 lb.)

New Option - Freedom Edition (24FWSFX)

Exclusive Freedom Edition Full-Body Paint Scheme (Freedom Light or Freedom Dark)
Dual-Pane Acrylic Windows with Built-In Day/Night Shades (Delete Standard Valances & Slide-Out Endwall Windows)
Insulated Cab Curtain
Additional 280-Amp Alternator
Delete 3.6kW Onan® LP Generator - Replaced by Additional Alternator
Delete 20.3-Gallon LP Tank
Two Low-Temp Lithium House Batteries (620AH Total)
Two 190W (380W Total) Solar Panels with 30-Amp Controller
3,000W Pure Sine Wave Inverter/Charger
20,400-BTU Truma® Combi D 6 E - High-Efficiency Furnace & Water Heater (Diesel)
12V 8 cu. ft. 2-Door Compressor-Driven Refrigerator
2-Burner Induction Range
50-Gallon Fresh Water Tank (Relocated in Bed Base)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Happy with our purchase!
Our product specialist Jim Rush was a pleasure to work with. There were no surprises. Rachel in finance was extremely helpful. We highly recommend working with Dylan's RV to all of our friends. We had a great experience!

Jim from Stockton, NJ
2015 Dynamax Super C
The whole experience was great, Mark and Rachael went out of their way for me. Even still when I have a question (I have many as this is my first RV) Mark responds promptly.

Frank from Englishtown, NJ
Excellent experience
Hey everyone at Dylans! The Berkshire is running great and a dream to drive cross country.

Mike

We are here to help, call us at
856-228-0090 or Contact Us

We are here to help!

856-228-0090
Contact Us
$ Get Internet Price $

Dylan's RV Center is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @856-228-0090 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2023 Dynamax isata 3 24RW

Why Do We Ask You For This Information?

Quick Links

Our Hours

RV Sales

RV Service

Used 2023 Dynamax isata 3 24RW

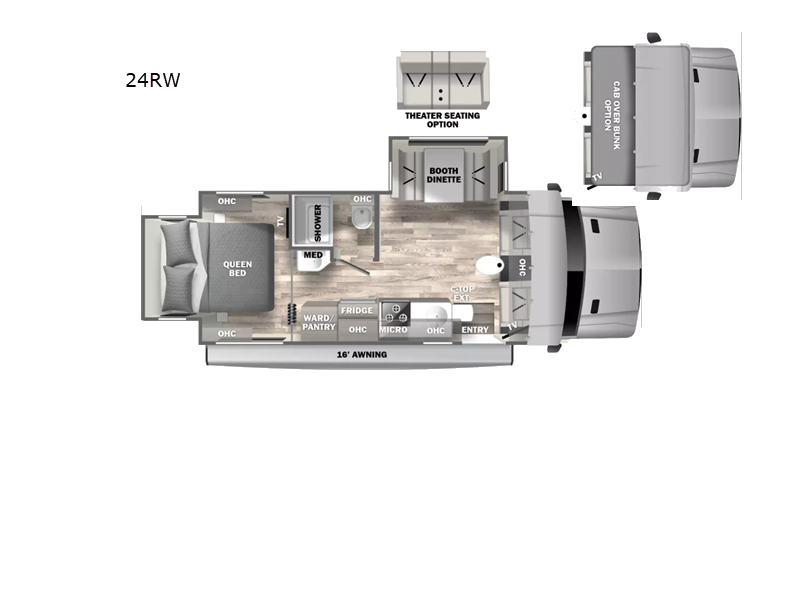

24RW Floorplan
