American Coach American Patriot Motor Home Class B - Diesel RVs For Sale
The American Coach American Patriot Class B diesel motorhomes contain luxurious appointments and amenities for a coach that is unmatched in elegance and style! Add on the optional Freedom Package and you'll be set for extended stays!

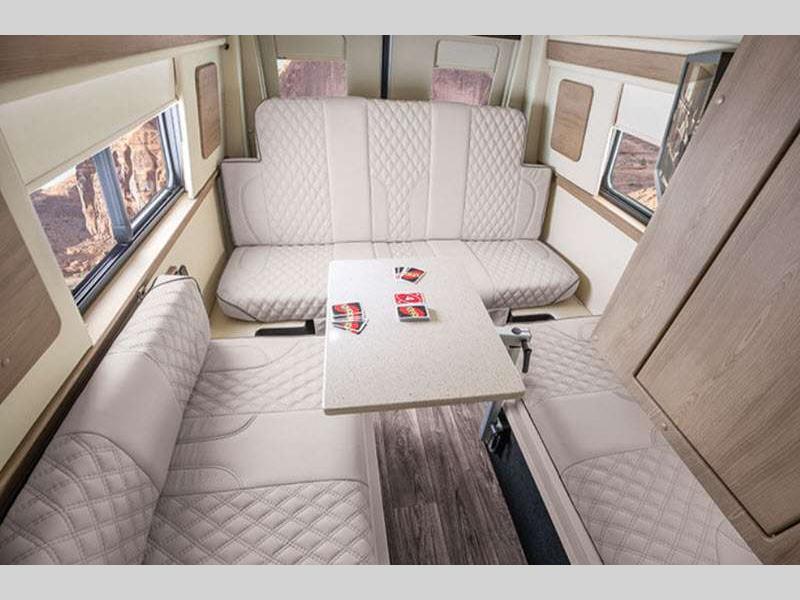

You will feel right at home with any model you choose since there are versatile seating and sleeping spaces, a convenient wet bath on board, innovative storage solutions, plus kitchen amenities that allow you to create meals each day. You will be able to put your own touch on your coach since there are five decor options, six cabinetry choices, and three exterior colors to choose from!
The American Coach American Patriot Class B diesel motorhomes offer you unmatched elegance and style; choose yours today!
-
American Patriot 170 EXT MD2
American Coach American Patriot Class B diesel motorhome 170 EXT MD2 highlights: ... more about American Patriot 170 EXT MD2
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Length 24 ft 2 in Ext Width 8 ft Ext Height 9 ft 11 in Int Height 6 ft 2 in Interior Color Graphite, Milkweed, Sand, Ginseng, Pure White Exterior Color Arctic White, Iridium Silver, Jet Black Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 27 gals Grey Water Capacity 24 gals Black Water Capacity 14 gals Furnace BTU 13600 btu Generator Onan QG 2500LP Fuel Type Diesel Engine 2.0L Inline-4 Turbo Chassis Mercedes-Benz Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170 in Torque 332 ft-lb Refrigerator Type Nova Kool Refrigerator Size 7.3 cu ft Cooktop Burners 2 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 15 gals Water Heater Type Tankless Propane AC BTU 15000 btu TV Info HD LED TV Gross Combined Weight 15250 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp -
American Patriot 170 EXT MD4
American Coach American Patriot Class B diesel motorhome 170 EXT MD4 highlights: ... more about American Patriot 170 EXT MD4
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Length 24 ft 2 in Ext Width 8 ft Ext Height 9 ft 11 in Int Height 6 ft 2 in Interior Color Graphite, Milkweed, Sand, Ginseng, Pure White Exterior Color Arctic White, Iridium Silver, Jet Black Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 27 gals Grey Water Capacity 24 gals Black Water Capacity 14 gals Furnace BTU 13600 btu Generator Onan QG 2500LP Fuel Type Diesel Engine 2.0L Inline-4 Turbo Chassis Mercedes-Benz Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170 in Torque 332 ft-lb Refrigerator Type Nova Kool Refrigerator Size 3.5 cu ft Cooktop Burners 2 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 15 gals Water Heater Type Tankless Propane AC BTU 15000 btu TV Info HD LED TV Gross Combined Weight 15250 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp -
American Patriot 170 MD2
American Coach American Patriot Class B diesel motorhome 170 MD2 highlights: ... more about American Patriot 170 MD2
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Length 22 ft 10 in Ext Width 8 ft Ext Height 9 ft 11 in Int Height 6 ft 2 in Interior Color Graphite, Milkweed, Sand, Ginseng, Pure White Exterior Color Arctic White, Iridium Silver, Jet Black Hitch Weight 7500 lbs GVWR 11030 lbs Fresh Water Capacity 27 gals Grey Water Capacity 24 gals Black Water Capacity 14 gals Furnace BTU 13600 btu Generator Onan QG 2500LP Fuel Type Diesel Engine 2.0L Inline-4 Turbo Chassis Mercedes-Benz Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170 in Torque 332 ft-lb Refrigerator Type Nova Kool Refrigerator Size 7.3 cu ft Cooktop Burners 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 15 gals Water Heater Type Tankless Propane AC BTU 15000 btu TV Info HD LED TV Gross Combined Weight 15250 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp -
American Patriot FD2
American Coach American Patriot Class B diesel motorhome FD2 highlights: Wet ... more about American Patriot FD2
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Length 19 ft 6 in Ext Width 7 ft 9 in Ext Height 9 ft 10 in Int Height 6 ft 2 in Interior Color Graphite, Milkweed, Sand, Ginseng, Pure White Exterior Color Arctic White, Iridium Silver, Jet Black Hitch Weight 5000 lbs GVWR 9050 lbs Fresh Water Capacity 19 gals Grey Water Capacity 22 gals Black Water Capacity 14 gals Furnace BTU 13600 btu Generator Onan QG 2500LP Fuel Type Diesel Engine 2.0L Inline-4 Turbo Chassis Mercedes-Benz Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 144 in Torque 332 ft-lb Refrigerator Type Nova Kool Refrigerator Size 3.5 cu ft Cooktop Burners 1 Axle Weight Front 4410 lbs Axle Weight Rear 5360 lbs LP Tank Capacity 10 gal. Water Heater Type Tankless Propane AC BTU 15000 btu TV Info HD LED TV Gross Combined Weight 13930 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp
American Patriot Features:
Standard Features (2024)
Interior
- Tankless hot water heater
- 15,000 BTU roof-top air conditioner
- Diesel & electric powered coach furnace
- Quite Tech 2.5kW propane generator
- 2000 watt inverter & charger
- HDMI input to main TV
- Multiple 120V outlets
- Multiple USB 12V chargers
- Rear HDTV (front HDTV on MD4 floor plan)
- Alpine sound system with Amp & subwoofer
- Digital touch screen coach controls
- Overhead courtesy lighting
- Smoke, propane, carbon dioxide detectors
- Fire extinguisher
- Climate controlled roof fan
- Solid surface countertops
- Molded sink with flush mount cover
- Recessed cook top
- Coordinated front panel refrigerator
- Stainless steel microwave
- Lagun removable table
- Dove tail drawers with residential soft close slides
- Cabinets and wardrobe with hidden hinges
- Soft touch automotive color keyed walls and headliner
- Composite seamless flooring
- Slide, swivel, & removeable rear captains on MD4
- Valances with wood inlay and indirect lighting
- Coordinated door panels
- Custom dash and door handle with wood grain
- Custom front floor mats with non-slip rubber backing
- Driver and passenger deluxe seating recover & swivel pedestals
- Rear captain chairs with swivel and slide pedestals (MD4 Only)
- Fold down computer & wiring table for driver (MD2 Only)
- Custom seating with seat belts
- Interior entrance grab handle
- Side and rear screen doors
- Power folding rear sofa bed
- Under sofa storage
- Complete insulation package
- Complete privacy shade package
- Front window privacy night shades

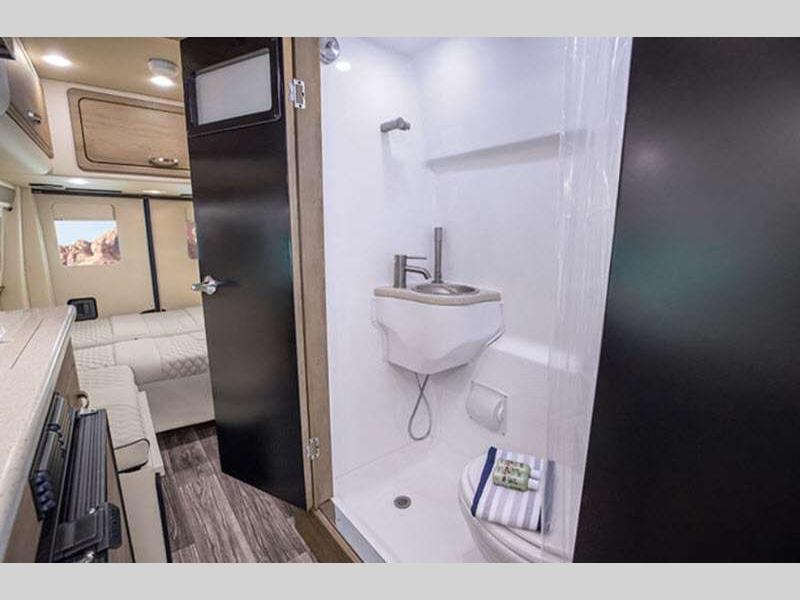

- Shower with dual entry solid doors with portal windows
- Solid surface sink in bath
- Retractable clothes line
- Shower curtain
- Porcelain toilet
- Power bath vent
- Heating pads for fresh and grey holding tanks
- Sani flush for black and grey holding tanks
- 27 gal fresh holding tank (19 gal. on FD2)
- 24 gal. grey holding tank (22 gal. on FD2)
- 14 gal black holding tank
Exterior
- Tinted side and rear windows
- Rear slider screened windows
- Color keyed bumpers and body moldings
- Rear hitch with wiring package
- Upgraded sumo suspension
- Aluminum wheels
- Rear back-up camera system
- Power awning with LED light
- LED patio light
- 120V outlet
- HD digital air TV antenna
- Roof-top solar charging system
- Dual battery charging system
- 330Ah house battery (70Ah on FD2)
- 30Amp shore line power plug
- 15.1 gal. propane tank (10 gal on FD2)
- All-in-One utility bay
- Cable TV input
- Fresh water fill
- Exterior shower
- Macerator pump with power gates and hose reel
Available Options
- New molded low profile spoiler
- Seat heat and massage for all captains
- Surround view camera system with monitor
- Wireless internet router & Apple TV
- Freedom 1080 package
- 108Ah Dragon Fly lithium batteries
- 3000 watt inverter
- Removes generator and propane gas
- High efficiency roof top AC
- Timberline diesel furnace & hot water heater
- Under hood generator/high output alternator
- 320 watts of solar power
- Complete roof rack with ladder
- Air ride suspension system
- Space-X STARLINK satellite system (N/A on FD2 floor plan) (170 MD2 Solar power decreases to 240 watts)
- Outdoor entertainment prep kit
- 110V outlet with HDMI output
- Exterior speakers mounted under chassis
- Legacy Package
- Weaved flooring
- Rain glass shower door
- Power windows shades
Specifications
- Engine: Inline-4 Turbo
- Engine Displacement: 2.0L
- Engine Type: Diesel
- Horsepower/Torque: 208HP at 3,400RPM
- Torque: 332 lb-ft at 1,600RPM
- Transmission: 9G-Tronic 9-Speed Automatic
- Engine Fuel Capacity: 24.5 gal.
- Drivetrains: RWD & AWD
- Wheelbase: 114" (FD2); 170" (170 MDS) 170" Extended (170 EXT MD2, 170 EXT MD4)
- Max Towing Capacity: 5,000 lbs. (FD2, 170 EXT MD2, 170 EXT MD4); 7,500 lbs. (170 MD2)
- Shore Power: L5-30 amp/120 VAC
- Water Pump (Shurflo): 3 GPM @ 55PSI/12VDC
- Refrigerator (Nova Kool): 3.5 cu. ft. /2.4amps/12V & 120V (FD2, 170 EXT MD4); 7.3 cu. ft./5.2amps/12V & 120V (170 MD2, 170 EXT MD2)
- Cooktop (True Induction): 1,600 watts/120V
- Microwave Output: 900 watts/120V (FD2, 170 EXT MD4); 1,000 watts/120V (170 MD2, 170 EXT MD2)
Standard Generator
- Generator: Onan QG 2500LP
- Propane Tank: 10 gal (FD2); 15 gal/63.6 lbs. (170MD2, 170 EXT MD2, 170 EXT MD4)
- Inverter: 2,000 watts
- Battery AGM: 1 x 70ah (FD2); 1 x 330ah (170 MD2, 170 EXT MD2, 170 EXT MD4)
- Solar: 200 watts
- Air Conditioner: Gree 110/15,000 BTUs
- Furnace Output (Autoterm): 13,600 BTU (Diesel)
- Hot Water Heater (Suburban): Tankless (Propane)
Optional Freedom 1080 Package
- Inverter/Charger: 3,000 watts
- Battery LiFePO (Dragon Fly): 4 x 270Ah
- Solar: 320 watts
- Air Conditioner: Gree 110V/15,000 BTUs
- Secondary Alternator: 280 Amps
- Furnace Output (Timberline): 22,000 BTU (Diesel & 120V)
- Hot Water Heater (Timberline): Tankless (Diesel & 120V)
- Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
